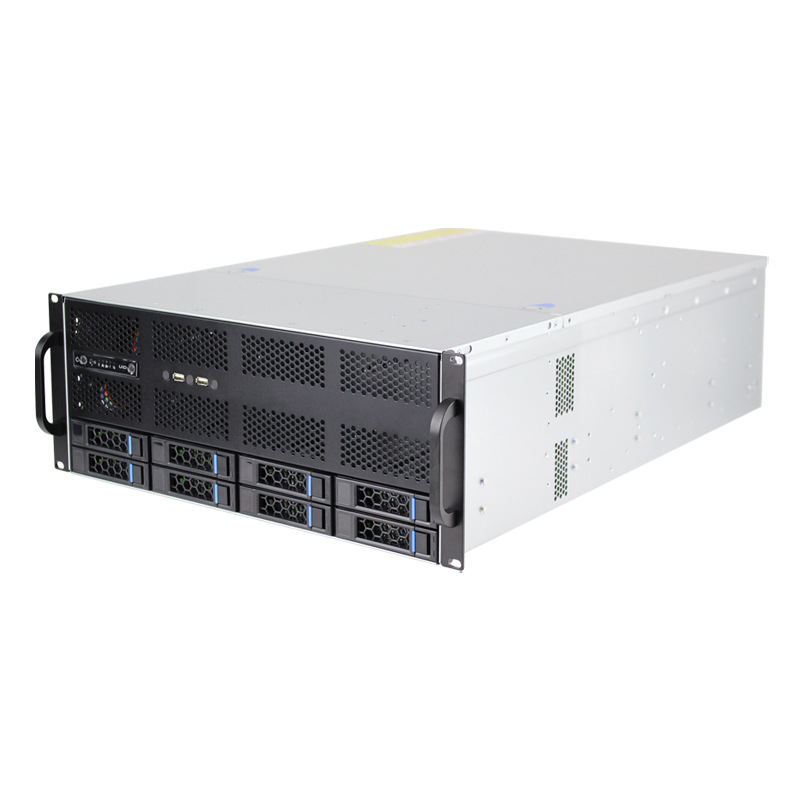

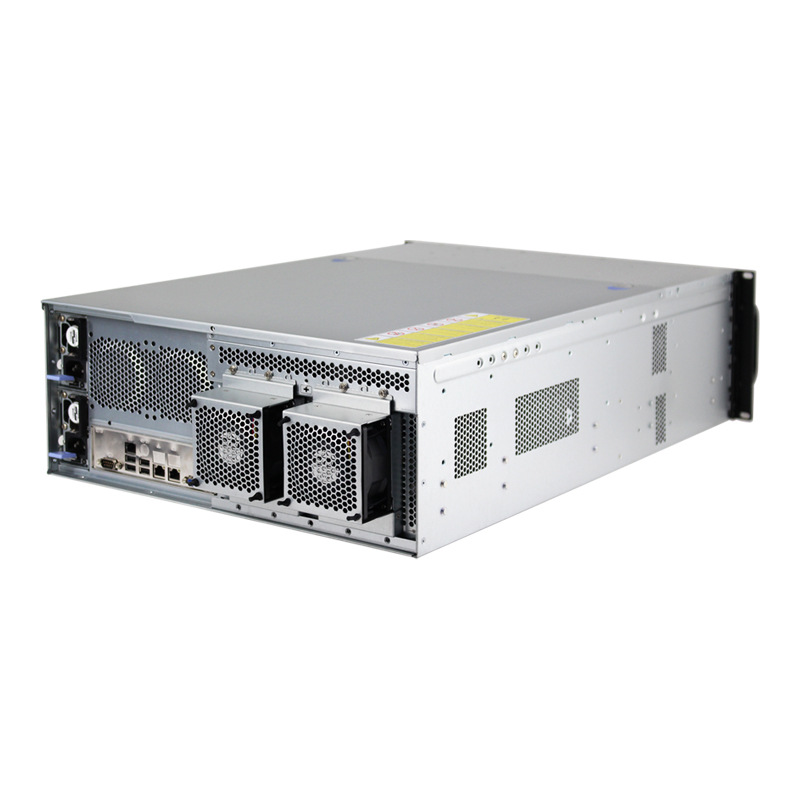

Rack Customized 4 Gpu Servers with Dual CPU LGA3647 Portable 4U Gpu Server case Computer Server with 3090 Gpu Cards

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

private mold : Yes

products status : Stock

type : Rack

processor main frequency : Servers

processor type : Servers

brand name : /

place of origin : Shanghai, China

Product name : Servers

Size : Customized Size

Color : Customizable

MOQ : 1PCS

Warranty : 1year

Lead Time : 1-3 Working Days

Package : Original Packaging

Price : CN¥8,880.85/pieces 1-99 pieces

Contact Now

Product Description

Specification

Product Description

Product Name	LY-X11D2A SERVER
CPU	Supports two In tel Xeon Scalable first and second generation CPUs with LGA3647 socket. Maximum support for 205W per CPU. Maximum support for 28 cores per CPU.
RAM	DDR4 ECCREGS 16G 2666*4

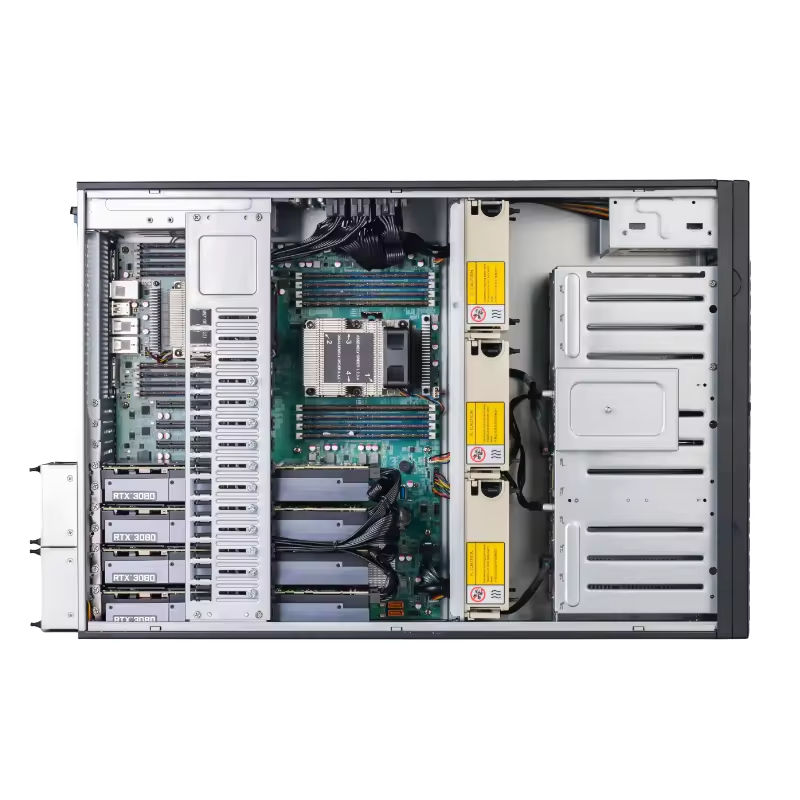

Motherboard	LY-X11D2A supports 4x dual-width GPUs
Power supply	2200W (1+1) redundant power supply
Southbridge	C621 chipset
BMC	ASPEED AST2500
Audio chip	ALC897
Network chip	1210-AT*2
RAM	Support for 16 memory Up to 2TB In tel Optane Persistent Memory 200 Series, DDR4-2666MHZ Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Up to 4TB 3DS ECC RDIMM DDR4-2933MHz Up to 2TB In tel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Supported Memory Frequencies	2933/2666/2400/2133 MT/S ECC DDR4 LRDIMM(3DS),RDIMM (3DS).
Single Memory Stick Capacity	LRDIMM:128GB,256GB RDIMM:64GB,128G.
PCLE	6 x PCle 3.0 x16, 1 x PCle 3.0 x4 (in x8 slot) 1 x M.2 Interface: PCle 3.0 x4 Form Factor: 22110, 2280 Key: M-Key 1 x COM pin header(2.54mm pitch 9pin)
Motherboard Interface	2 x 8087 interfaces support 8 x SATA3.0 2 x SATA3.0 interfaces 1 x USB3.0 header, supporting two USB3.0 1 x USB2.0 header, supporting two USB2.0 1 x HD AUDIO Header

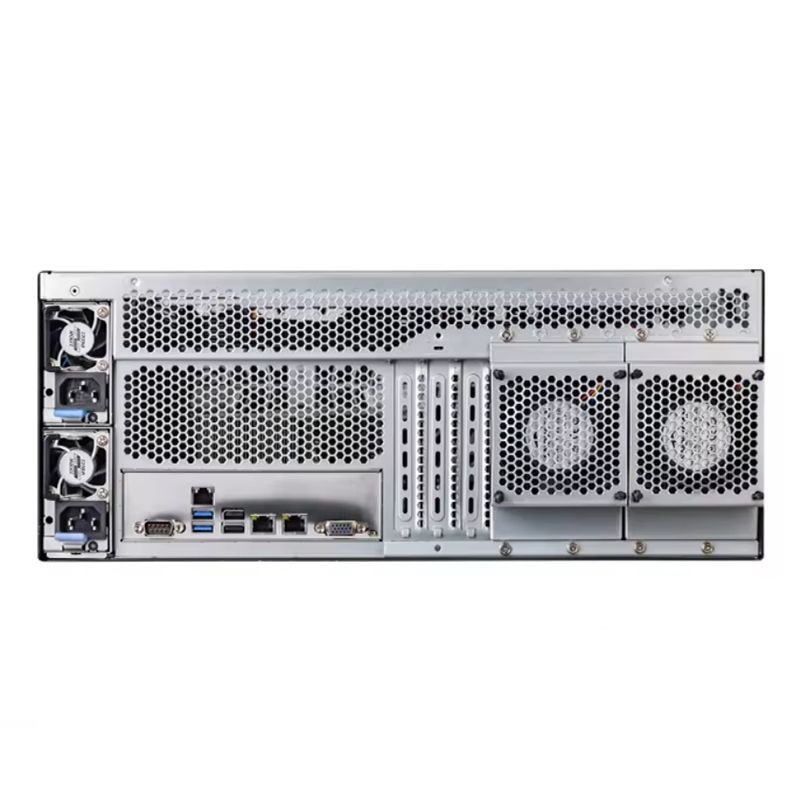

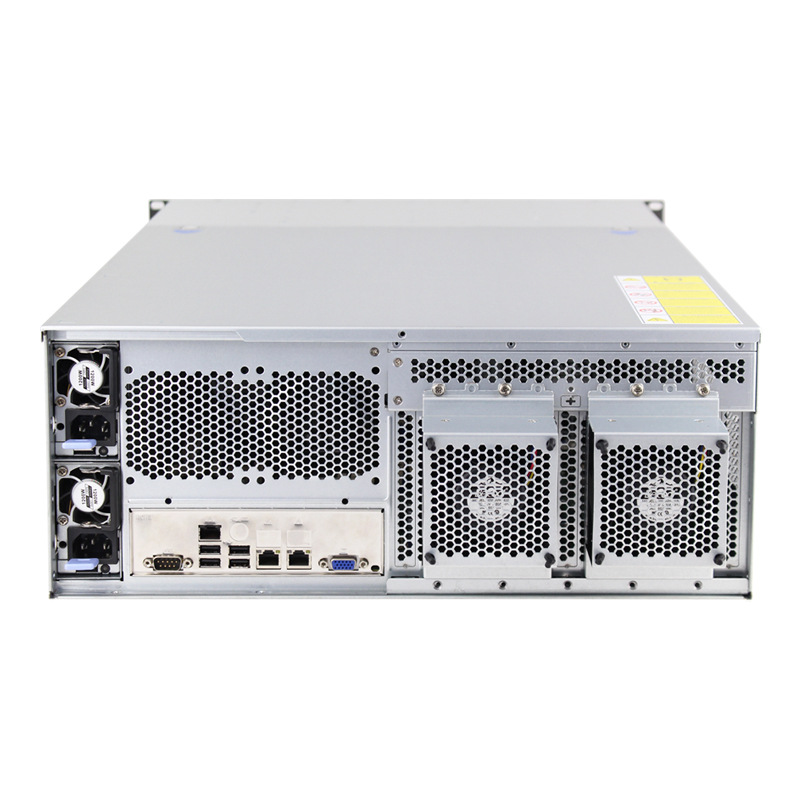

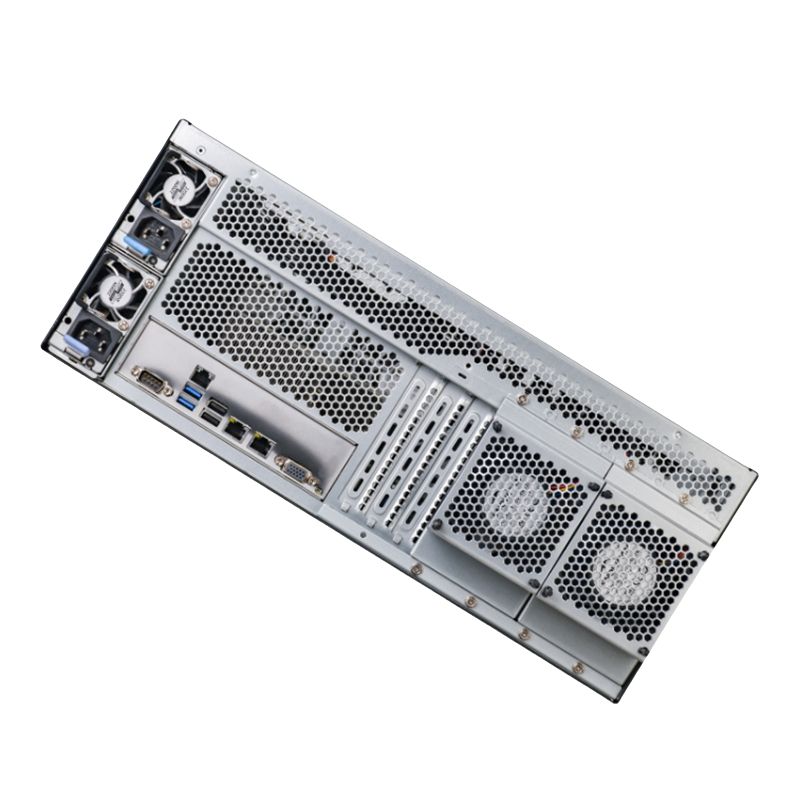

I/O	1 x VGA DB15 2 x 1000M/100M/10M bps auto-negotiation network ports 2 x USB3.0 + remote management network port 1 x COM DB9 interface
Temperature	Operating: 0 to 60°C Storage: -20 to 75°C.
Humidity	5 to 95% RH (non-condensing).
